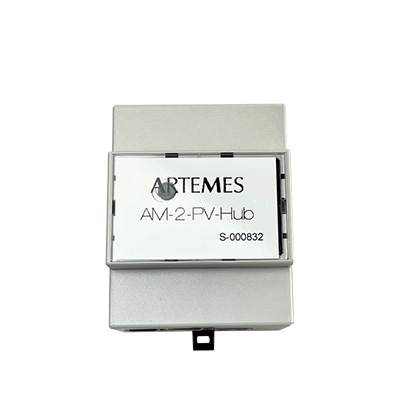

AM-2 -PV-Hub - measuring instrument - to connect your photovoltaic system to the ARTEMES Cloud for remote management and control; data access via web browser for data analysis

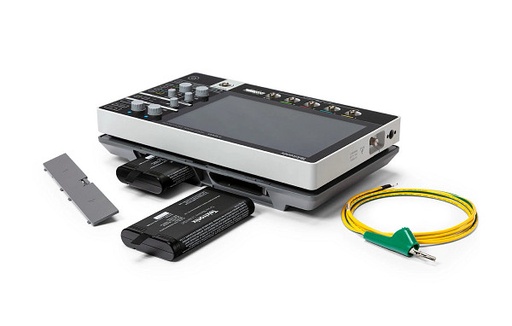

Battery Pack with 2 battery slots and 1 battery for use with 2 Series Oscilloscopes

Installed Option; Add MSO function with 16 digital channels; includes P6316 digital probe and accessories.

Carrying bag for TPS rack, transducers, cables and burden modules

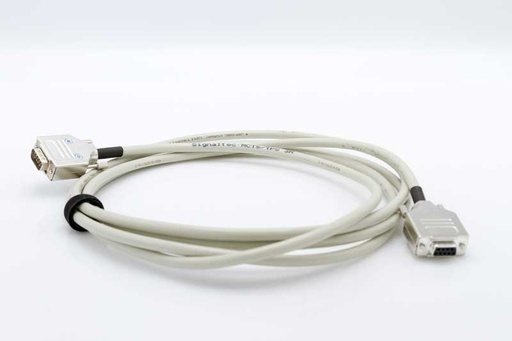

12 meters connection cable, 0.75 mm²

7 meters connection cable, 0.34 mm²

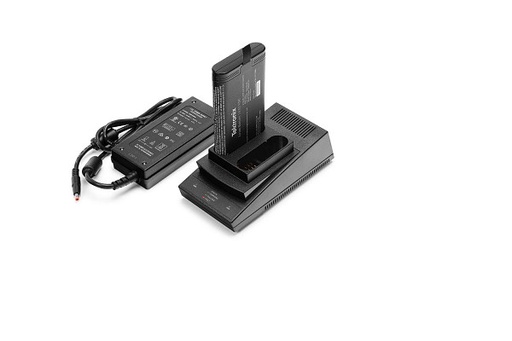

Standalone Battery charger for charging TEKBAT-01 battery

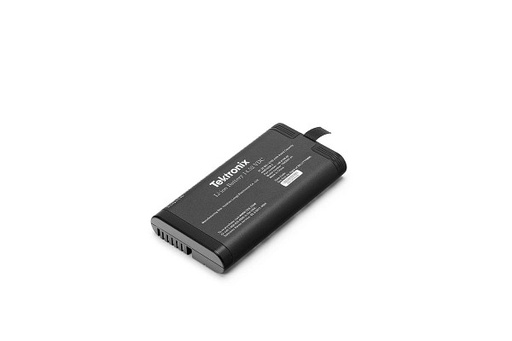

Additional spare battery for use with battery pack 2-BP

flexible recorder for power applications, 4 to 16 channels, configurable, with or without GPS synchronisation, DIN rail mounting, possible configurations: PFR, PQ, PMU, DFR, PM, all-in-one

transport bag for accessory, size: in mm (height/width/depth): 550x300x80

20 meters connection cable, 0.34 mm²

1.5 meters connection cable, 0,34 mm²

20 meters connection cable, 0.34 mm²

Carrying bag for MCTS rack, transducers and cables

License; Software Bundle; Pro Signal Integrity Bundle for 5 Series MSO for 1 Year; Requires 5-WIN; Node Locked

Measuring range: 100 mA .. 100 A peak
Bandwidth: 100 kHz (-3 dB)
Transformer ratio (measuring ranges): 100 mV/A10 mV/A
Enclosure Ø: 11.8 mm
Power supply: Internal: 9 V battery External: +5 VDC via μUSB type B socket
Connections: Coaxial cable, 2 m long, with insulated BNC connector
Safety: IEC 61010-1 & IEC 61010-2-032 600V CAT III / 300V CAT I
Sicherheit: IEC 61010-1 & IEC 61010-2-032 600V CAT III / 300V CAT I

Current Transducer, 2000 A current range
Ratio: 2000 : 1, -40 ... + 85 °C

500 Arms Current Transducer
Ratio: 750 : 1, -40 ... +85 °C

400 Arms Current Transducer
Ratio: 1500 : 1, -40 ... + 85 °C

200 Arms Current Transducer
Ratio: 1000 : 1, -40 ... + 85 °C
