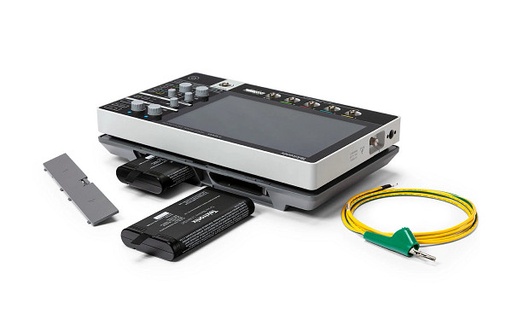

Battery Pack with 2 battery slots and 1 battery for use with 2 Series Oscilloscopes

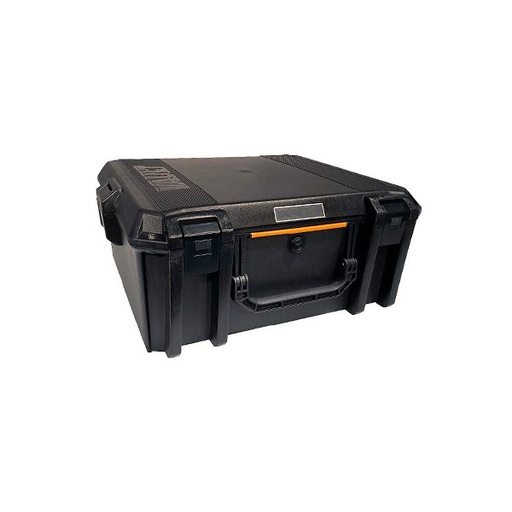

Hard carrying case for 2 Series Oscilloscopes

Installed Option; Add MSO function with 16 digital channels; includes P6316 digital probe and accessories.

Protective case for use with 2 Series Oscilloscopes

Rackmount Kit for 2 Series Oscilloscopes

License; Serial protocol support for I2C, SPI, UART, CAN, CAN-FD, LIN, SENT; Node Locked

License, AFG (Arbitrary Function Generator) and DPG (Digital Pattern Generator), Node Locked

License; Ultimate Bundle for 2 Series MSO, includes Source and Serial options; Node Locked

Installed option; Power Solution Bundle (5-PWR, THDP0200, TCP0030A, 067-1686-XX (deskew fixture)

Installed option; Power bundle includes 5-PS2 (includes 5-PWR TCP0030A THDP0200 Deskew fixture) 2 x TPP0502 Passive probes

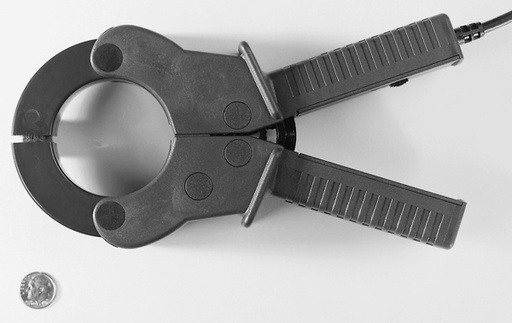

Current Probe: 50 kHz, 10 mA to 2000 A, AC, BNC

Current Probe: 100 kHz, 10 mA to 100 A, AC/DC, BNC

AMPLIFIER, DIFF; MICROVOLT, DIFFERENTIAL, - CERTIFICATE OF TRACEABLE CALIBRATION STANDARD

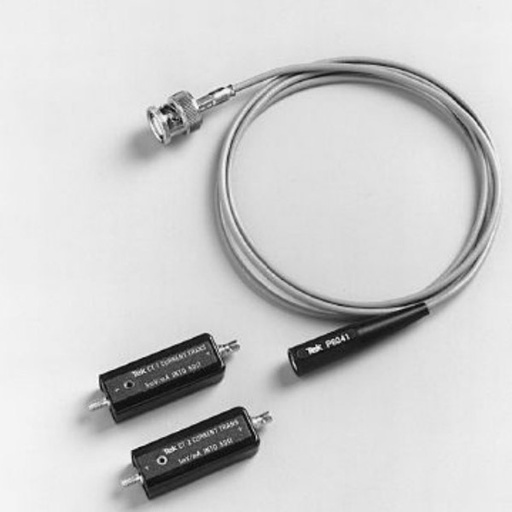

CURRENT XMFR; 1GHZ 12A W/PROBE - STATEMENT OF COMPLIANCE

CURRENT XMFR; 200MHZ 36A W/PROBE - STATEMENT OF COMPLIANCE WITH THIS PRODUCT

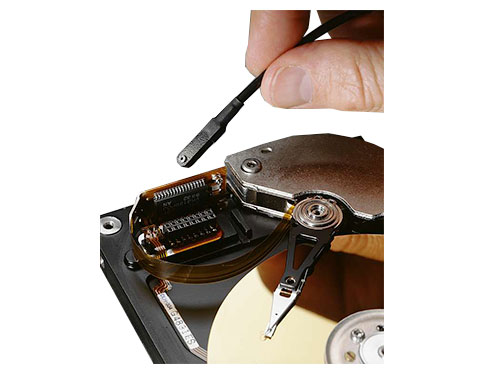

CT6 PROBE; CURRENT PROBE, HIGH FREQ/SMALL GEOMETRY - CERTIFICATE OF TRACEABLE CALIBRATION STANDARD

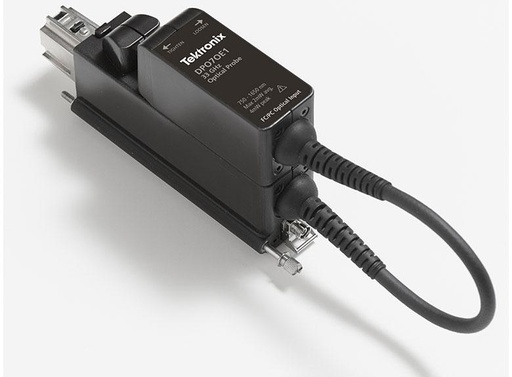

33GHz, single/multi-mode optical probe for MSO/DPO70000 Real Time Oscilloscopes. Wavelength range: 750nm - 1650nm

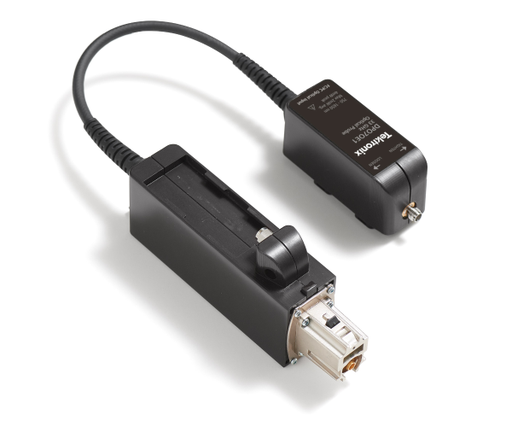

59GHz, single mode optical probe for MSO/DPO70000 Real Time Oscilloscopes. Wavelength range: 1200nm - 1650nm

Measuring range: 100 mA .. 100 A peak
Bandwidth: 100 kHz (-3 dB)
Transformer ratio (measuring ranges): 100 mV/A10 mV/A
Enclosure Ø: 11.8 mm
Power supply: Internal: 9 V battery External: +5 VDC via μUSB type B socket
Connections: Coaxial cable, 2 m long, with insulated BNC connector
Safety: IEC 61010-1 & IEC 61010-2-032 600V CAT III / 300V CAT I
Sicherheit: IEC 61010-1 & IEC 61010-2-032 600V CAT III / 300V CAT I

License; Education-only version with all SignalVu-PC modules except 5GNR; Floating
