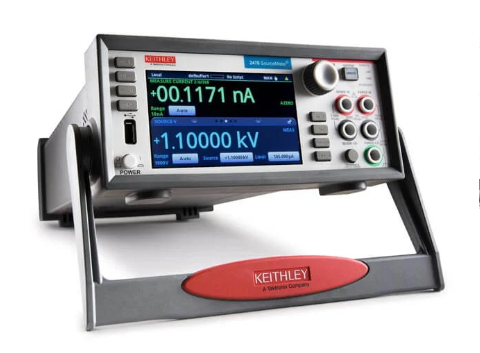

Keithley 2470 SourceMeter® – High-voltage SMU for precise I-V characterization
The Keithley 2470 SourceMeter® is a high-performance high-voltage SMU (Source Measure Unit) specifically designed for high-voltage, ultra-low-current applications. With a voltage range up to 1100V, 10fA resolution, and 0.012% measurement accuracy at 6.5-digit resolution, the 2470 offers the perfect combination of range, precision, and reliability—ideal for applications such as high-voltage semiconductor testing, insulation measurements, and component characterization.
The device features intuitive user guidance via a high-resolution 5-inch touchscreen, supports four-quadrant operation for source and sink applications, and can be flexibly integrated into automated test environments via SCPI and TSP® scripting. TSP-Link also allows for easy expansion to a multi-channel I/V test system.
With front-panel banana jacks, rear-panel high-voltage triax connectors, and a USB 2.0 port for data transfer and device configuration, the Keithley 2470 is ideally equipped for versatile laboratory use. Context-sensitive help directly on the device efficiently supports the user in everyday use.
The Keithley 2470 is the optimal choice for anyone who wants to perform high-voltage tests with the highest precision and maximum ease of use.
