MSO24

Thank you for information, we will get back to you asap.
Error in product call for price.
https://erp.artemes.org/web/image/product.template/116700/image_1920?unique=235d3a9

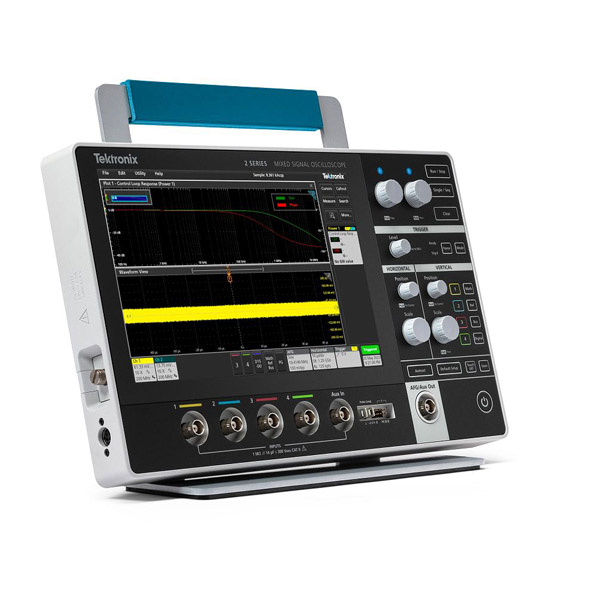

Mixed Signal Oscilloscope (4) Analog Channels, 10M record length, Certificate of Traceable Calibration Standard

2,850.00 € 2850.0 EUR 2,850.00 €

30.00 €

Not Available For Sale

  • Brand
  • Channels
  • Oscilloscope-Bandwidth
  • vertical resolution
  • SPECIAL FEATURES

This combination does not exist.

Contact Us
  • analogue channels: 2
  • analogue channel bandwidth: 70 MHz, 100 MHz, 200 MHz, 350 MHz and 500 MHz; bandwidth of 500 MHz guaranteed from 4 mV/sec to 10 V/
  • sampling rate: 1.25 GS/s all channels, 2.5 GS/s half channels overlapping
  • recording length: 10 M
  • digital channels: 16
  • AFG outputs:1 (multiplex with AUX output)

Portable oscilloscope for daily troubleshooting and testing

For those seeking the convenience of a portable handheld oscilloscope, the MSO Series 2 offers unrivalled performance. Although the Series 2 MSO is small enough to fit in a laptop bag, it offers bandwidths up to 500 MHz at a maximum sampling rate of 2.5 GS/s and is available with 2 or 4 analogue channels. Front and side inputs and outputs allow easy access and connection. The optional, removable battery pack offers flexibility for use in the laboratory or outdoors. Create more space in your lab with our most compact, portable handheld oscilloscope without compromising on performance. With a depth of just 3.8 cm and weighing less than 2 kg, the MSO Series 2 is a full-featured real-time touchscreen oscilloscope that can be operated like a tablet PC. Use it in the laboratory, in the classroom or on site, wherever you carry out your measurements.


Convenient touchscreen interface and logical operation

The MSO Series 2 offers the same award-winning touchscreen user interface and simplified control panel you've come to expect from Tektronix's most advanced oscilloscopes.

data sheets
manuals
Standard accessories
  •  TPP0200 200 MHz, 10-fold probe (one per channel)
  • device stand
  • installation and safety manual (available in English, Japanese and simplified Chinese)
  • integrated help function
  • external power supply
  • calibration certificate to document traceability to the measurement standards of the national metrology institutes and ISO9001/ISO17025 quality system registration
  • the one-year warranty; includes all labour and parts for the device. The one-year warranty covers all parts and labour for included probes

Recommended accessories

specifications

Oscilloscope-Bandwidth 70 MHz or 100 MHz or 200 MHz or 350 MHz or 500 MHz
Brand Tektronix
Channels 4
vertical resolution 8 Bits
SPECIAL FEATURES Portable Scopes
