MSO24-EDU

Call For Price

MSO24 EDU: (4) Analog channel, (16) Digital channels, 2.5GS/s sample rate, 10Mpts record length; EDU features; 5-year protection

Brand
- Tektronix
Channels
- 4
Bandbreite
- 70 MHz + 3,110.00 €
- 100 MHz + 3,420.00 €
- 200 MHz + 3,860.00 €
vertikale Auflösung
- 8 Bits
SPECIAL FEATURES
- Portable Scopes

This combination does not exist.

MSO2-EDU series

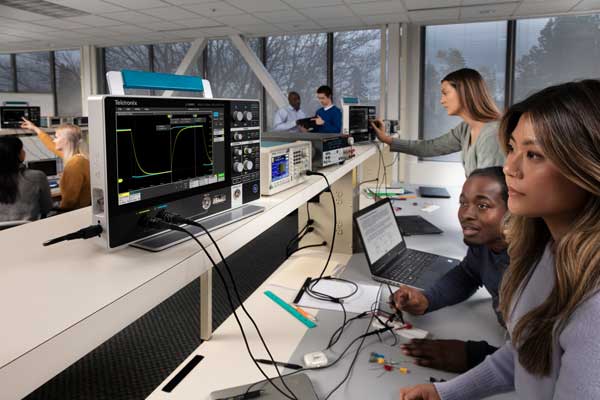

The compact, versatile oscilloscope has been specially developed for teaching.

It impresses with its user interface and a wide range of serial communication analyses, a built-in (AFG) and DPG signal source, a 5-year Tektronix warranty and much more...

Ideal for use in the field

The optional battery pack extends the possibilities of the device by allowing it to be used outside the laboratory.

The device used in the laboratory can therefore also be used in the field.

An extensive catalogue of compatible probes and a comprehensive range of accessories round off the range and make the Series 2 MSO the most powerful and versatile device in its class.

Exclusively for educational institutions:

The Series 2 MSO-EDU is also available in a bundled version for teachers.

It includes the oscilloscope, serial trigger and decoding, digital inputs, an arbitrary function generator and a five-year warranty.

Datasheet

MSO2-EDU-Datasheet_EN

Handbücher

User Manual EN

Standard accessories

TPP0200 200 MHz, 10x probe (one per channel)
P6316 logic probe
Instrument stand
Installation and safety manual
Embedded help
External power supply
Calibration certificate

Recommended accessories

Specifications

Bandbreite	70 MHz or 100 MHz or 200 MHz
Brand	Tektronix
Channels	4
vertikale Auflösung	8 Bits
SPECIAL FEATURES	Portable Scopes
